Getting Started with Charmed Istio Service Mesh¶

Introduction¶

This tutorial demonstrates how to:

deploy the Istio service mesh using Charmed Istio
put a microservice application on the mesh
secure that application by:
- establishing mTLS between all components
- creating authorization policies that allow only the required communication, blocking any other entity from even reaching your components To demonstrate this, we’ll use the Istio Bookinfo example application.

Prerequisites¶

This tutorial assumes you have a Juju controller bootstrapped on a MicroK8s cloud that is ready to use, on a 4 CPU, 8 GB node or better, with at least 40 GB disk space. Typical setup using snaps can be found in the Juju docs.

This tutorial also assumes you have a basic knowledge of Juju.

Configure MicroK8s¶

For this tutorial to go smoothly, make sure the following MicroK8s addons are enabled: dns, hostpath-storage, and metallb.

You can check this with microk8s status and enable any missing addons.

Deploy Charmed Istio¶

Step 1: Set up the Istio System¶

Create a dedicated model for Istio components and deploy the core charms:

Note

The channels of the charms in the tutorial are currently pinned edge channels to include certain bug fixes and features from the corresponding charm required to efficiently demonstrate service-mesh capabilities.

juju add-model istio-system
juju deploy istio-k8s --trust --channel 2/edge
juju deploy istio-ingress-k8s --trust --channel 2/edge

The istio-k8s charm deploys and manages the control plane of an Istio service mesh on Kubernetes, enabling you to configure and manage Istio through Juju.

The istio-ingress-k8s charm manages Istio ingress gateways in Kubernetes clusters and provides an ingress endpoint for charms that use it.

Step 2: Offer Istio Ingress¶

As we’ve deployed a single central ingress for our applications, we must make that ingress accessible to other Juju models by offering it:

juju offer istio-ingress-k8s:ingress

Deploy Charmed Bookinfo Application¶

The Bookinfo application consists of three charms:

bookinfo-productpage-k8s: Frontend charm that displays book information
bookinfo-details-k8s: Backend charm that provides book details
bookinfo-reviews-k8s: Backend charm that provides book reviews

The Bookinfo example was chosen for this tutorial because:

It’s the official demo application used by Istio
It’s composed of multiple microservices that replicate a conventional web application and can be conveniently used to demonstrate various service mesh features

The Bookinfo application needs the bookinfo-productpage-k8s successfully communicating with the bookinfo-details-k8s and bookinfo-reviews-k8s for the web application to display all the relevant information without any errors.

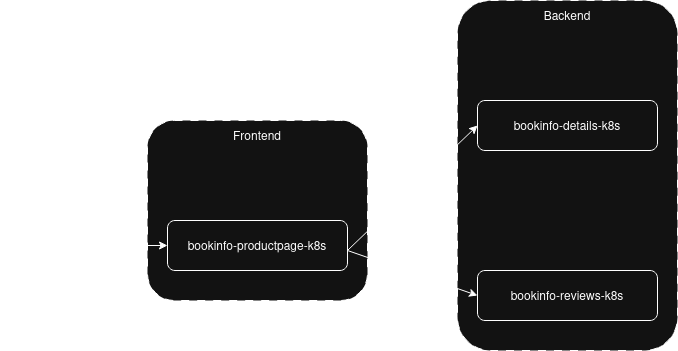

Charmed bookinfo application architecture

Step 3: Deploy Application Components¶

Create a model for the application and deploy the charms:

juju add-model bookinfo

# Deploy the charms
juju deploy bookinfo-productpage-k8s
juju deploy bookinfo-details-k8s
juju deploy bookinfo-reviews-k8s

# Connect the charms
juju integrate bookinfo-productpage-k8s:details bookinfo-details-k8s:details
juju integrate bookinfo-productpage-k8s:reviews bookinfo-reviews-k8s:reviews

Now you can sit back and watch the deployment take place:

juju status --integrations --watch=5s

Step 4: Configure External Access¶

Expose the bookinfo-productpage-k8s using the istio-ingress-k8s ingress gateway. It is necessary to consume istio-ingress-k8s from the istio-system model into the bookinfo model before adding the ingress relation.

juju consume istio-system.istio-ingress-k8s
juju integrate bookinfo-productpage-k8s istio-ingress-k8s:ingress

This ingress relation would allow the bookinfo-productpage-k8s charm to be accessed from outside the cluster, for example, your browser.

Step 5: Access the Application¶

Get the application URL and verify it’s working:

juju run bookinfo-productpage-k8s/0 get-url

Open the URL in your browser. You’ll see the book information page.

Bookinfo application

Why Do We Need Charmed Istio?¶

While the application works, it has critical security vulnerabilities:

Communication Between Workloads Is Not Encrypted by Default¶

All microservice communication happens over plain HTTP. This means sensitive data is exposed to anyone with network access and can be intercepted or modified.

While Kubernetes supports manual TLS configuration, managing certificates for each microservice becomes exponentially complex as your architecture scales - requiring certificate generation, distribution, rotation, and troubleshooting across potentially hundreds of services.

Unrestricted Service Communication¶

Every service can access every other service without restrictions. If an attacker compromises one service, they immediately gain access to your entire application. You can verify this unrestricted access:

# All endpoints are accessible with any HTTP method
juju exec -m bookinfo -u bookinfo-productpage-k8s/0 -- curl -s http://bookinfo-details-k8s.bookinfo.svc.cluster.local:9080/
juju exec -m bookinfo -u bookinfo-productpage-k8s/0 -- curl -s http://bookinfo-details-k8s.bookinfo.svc.cluster.local:9080/health
juju exec -m bookinfo -u bookinfo-productpage-k8s/0 -- curl -s http://bookinfo-details-k8s.bookinfo.svc.cluster.local:9080/details/1

# Even potentially dangerous methods like POST work
juju exec -m bookinfo -u bookinfo-productpage-k8s/0 -- curl -s -X POST http://bookinfo-details-k8s.bookinfo.svc.cluster.local:9080/details/1 -d '{}'

While Kubernetes provides some network controls to partly address this, Istio provides a richer AuthorizationPolicy object that lets you define:

Which workloads can communicate with which
Specifically how they can communicate (what HTTP methods are allowed, endpoints can be accessed, etc)

So for example, through Istio we could say:

PodA is allowed to talk to PodB using GET and POST on port 1234
nobody is allowed to talk to PodC

The Charmed Istio Solution¶

Charmed Istio automatically provides:

mTLS encryption between all charmed workloads on the mesh without manual certificate management
Fine-grained authorization policies defining exactly which services can communicate
Simplified Day 2 operations where most common authorization policies are created automatically just by establishing existing Juju relations

Let’s secure our application with Charmed Istio.

Secure with Service Mesh¶

Step 6: Add Services to the Mesh¶

Deploy the istio-beacon-k8s charm and connect it to the bookinfo backend charms:

juju deploy istio-beacon-k8s --channel 2/edge
juju integrate bookinfo-details-k8s istio-beacon-k8s
juju integrate bookinfo-reviews-k8s istio-beacon-k8s

With the above two simple commands, the istio-beacon-k8s charm

Adds the bookinfo-details-k8s and bookinfo-reviews-k8s charms to the Istio service mesh
Applies mTLS for the traffic between the services in the mesh
Applies a deny-by-default authorization policy which means traffic to anything on the mesh is denied unless explicitly allowed

Refresh the Bookinfo webpage in your browser - you’ll notice that the details section and the reviews section are no longer accessible because the bookinfo-productpage-k8s charm is not authorized to communicate with them.

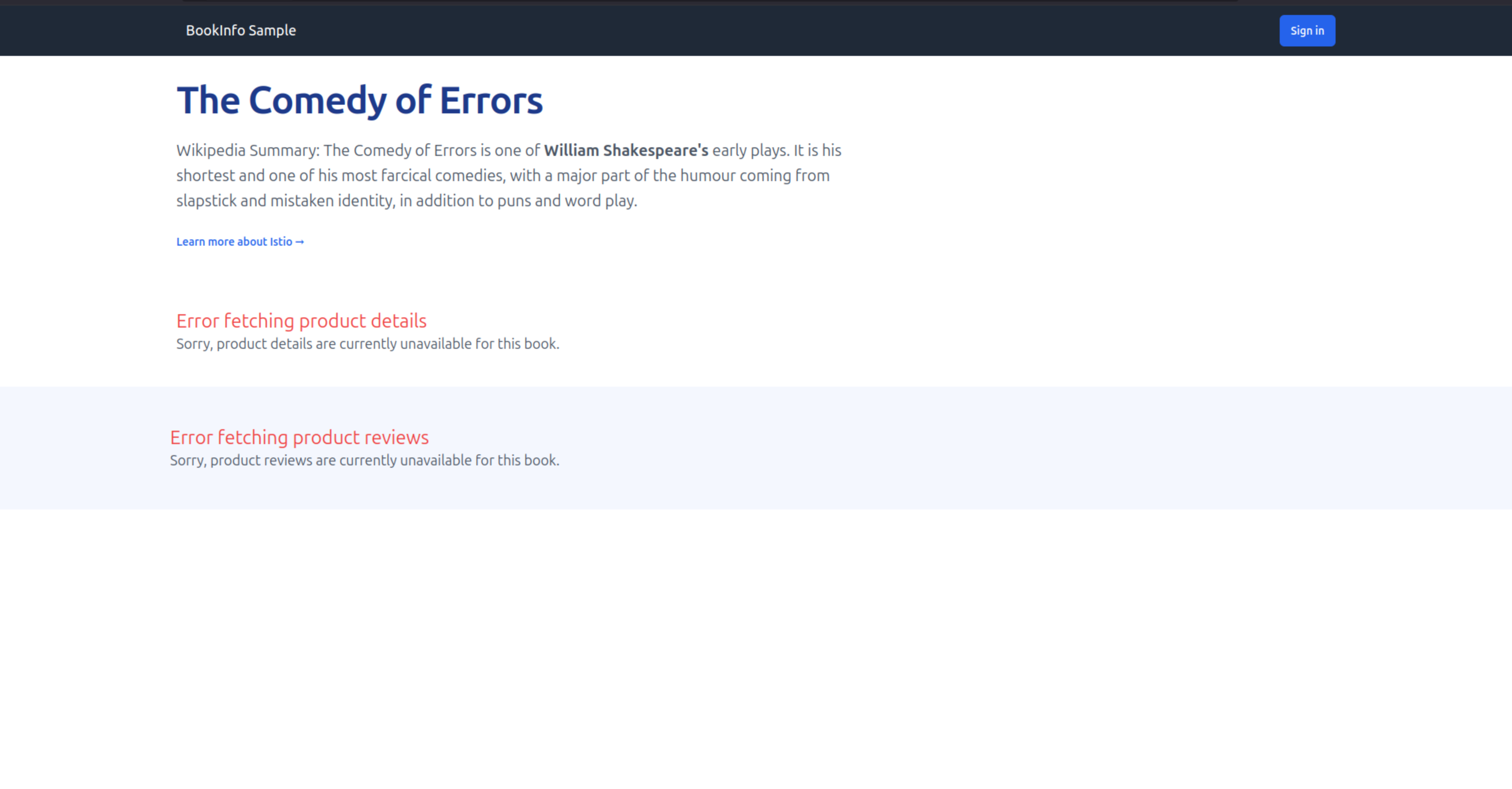

Bookinfo application with authorization error

Add the bookinfo-productpage-k8s charm to the mesh to enable secure communication:

juju integrate bookinfo-productpage-k8s istio-beacon-k8s

The istio-beacon-k8s charm automatically creates authorization policies allowing bookinfo-productpage-k8s to access specific endpoints on the bookinfo-details-k8s and bookinfo-reviews-k8s charms via GET requests on port 9080. Check the How-To section for details on how to add support for Charmed Istio in your own charm and define authorization policies.

Refresh the application - the missing sections should now be available again. With these few commands, you have:

Secured the traffic between the services with mutual TLS (mTLS)
Specified authorization policies so that the services can communicate only along the allowed traffic routes

Verify the Security Configuration¶

With Charmed Istio authorization policies in place, access is now restricted.

The bookinfo-details-k8s charm allows access only to /health and /details/* endpoints for GET requests via port 9080 from authorized services
The bookinfo-reviews-k8s charm allows access only to /health and /reviews/* endpoints for GET requests via port 9080 from authorized services

Verify the security restrictions:

# These still work - authorized endpoints with GET method
juju exec -m bookinfo -u bookinfo-productpage-k8s/0 -- curl -s http://bookinfo-details-k8s.bookinfo.svc.cluster.local:9080/health
juju exec -m bookinfo -u bookinfo-productpage-k8s/0 -- curl -s http://bookinfo-details-k8s.bookinfo.svc.cluster.local:9080/details/1

# These are now blocked - unauthorized endpoint or method
juju exec -m bookinfo -u bookinfo-productpage-k8s/0 -- curl -s http://bookinfo-details-k8s.bookinfo.svc.cluster.local:9080/
juju exec -m bookinfo -u bookinfo-productpage-k8s/0 -- curl -s -X POST http://bookinfo-details-k8s.bookinfo.svc.cluster.local:9080/details/1 -d '{}'

Notice how the same commands that worked before are now properly restricted based on endpoint and HTTP method.

Troubleshooting¶

If you encounter issues during the deployment:

Check the status of all charms:
```
juju status --integrations
```
Verify the Istio components are running:
```
kubectl get pods -n istio-system
```
Check if the application pods are running:
```
kubectl get pods -n bookinfo
```

Review the Juju debug logs for any issues:

juju debug-log --include istio-beacon-k8s

Summary¶

Congratulations! You’ve successfully:

Deployed Charmed Istio service mesh
Deployed the Charmed Bookinfo web application
Secured the application with mesh integration
Configured fine-grained authorization policies

Tip

If you’re planning to continue with the Getting Started with Charmed Istio: Cross-Model Mesh tutorial, keep both models running as it builds upon this deployment.

Teardown¶

To clean up the resources created in this tutorial, run:

juju destroy-model bookinfo
juju destroy-model istio-system

Next Steps¶

To further explore Charmed Istio capabilities:

Continue with Getting Started with Charmed Istio: Cross-Model Mesh to deploy part of the Bookinfo application in a separate model
Visualize your service mesh in the Getting Started with Kiali tutorial
