Getting Started with Charmed Istio: Cross-Model Mesh

This tutorial demonstrates how to extend your Istio service mesh across multiple Juju models, enabling secure communication between charms deployed in different models. You’ll learn how to create authorization policies and establish cross-model relations through Charmed Istio.

Introduction

In this tutorial, we’ll continue working with the charmed Bookinfo application and extend the setup from the previous tutorial.

We’ll move a backend charm (bookinfo-reviews-k8s) into a separate Juju model and securely connect it to the frontend charm across model boundaries.

Prerequisites

Before starting this tutorial, ensure you have:

Deploy the Reviews Charm in a New Model

Step 1: Remove the bookinfo-reviews-k8s charm

Remove the bookinfo-reviews-k8s charm from the bookinfo model so it can be deployed in a different model to demonstrate cross-model communications through Charmed Istio:

# Switch to the bookinfo model if that's not your current Juju model
juju switch bookinfo

juju remove-application bookinfo-reviews-k8s

Step 2: Create a New Juju Model

Let’s create a separate model for the bookinfo-reviews-k8s charm and deploy it in that Juju model:

juju add-model bookinfo-2
juju deploy bookinfo-reviews-k8s

Step 3: Deploy Istio Beacon in the New Model

Similar to the bookinfo model in the previous tutorial, let’s deploy the istio-beacon-k8s charm into this model so the bookinfo-reviews-k8s charm can be added to the service mesh:

juju deploy istio-beacon-k8s --trust --channel=2/edge

Note

While it’s possible to use a single istio-beacon-k8s charm across multiple models, it’s recommended to deploy one beacon per Juju model for better isolation and management. This tutorial follows the recommended approach.

Step 4: Add the Reviews Charm to the Mesh

Integrate the bookinfo-reviews-k8s charm with the beacon to add it to the service mesh:

juju integrate bookinfo-reviews-k8s istio-beacon-k8s

Configure Cross-Model Relations

Step 5: Offer the Reviews Charm

Make the bookinfo-reviews-k8s charm available to other models by offering it:

juju offer bookinfo-reviews-k8s:reviews,provide-cmr-mesh

This command offers two relations:

  • reviews: The application-specific relation for connecting the frontend bookinfo-productpage-k8s with the backend bookinfo-reviews-k8s charm

  • provide-cmr-mesh: A service mesh relation that allows applications in other Juju models to make HTTP calls to this charm via the service mesh

Step 6: Consume and Connect the Reviews Charm

Switch back to the original bookinfo model, consume the bookinfo-reviews-k8s charm from the bookinfo-2 Juju model and establish the cross-model connections:

juju switch bookinfo
juju consume bookinfo-2.bookinfo-reviews-k8s
juju integrate bookinfo-productpage-k8s:require-cmr-mesh bookinfo-reviews-k8s:provide-cmr-mesh
juju integrate bookinfo-productpage-k8s:reviews bookinfo-reviews-k8s:reviews

The first integration establishes the service mesh connection, while the second creates the application-level relationship between the charms.

Note

It is important to note that the asymmetric provide-cmr-mesh and require-cmr-mesh relations between two charms are required only when they need to be added to the mesh and they are in different models. For two charms in the same model, this relation is not required, as can be seen in the previous tutorial.

Step 7: Verify the Deployment

After the integrations are complete, refresh your Bookinfo webpage in your browser. The behavior of the web application itself should remain the same, and the app should successfully display the details and reviews of the book.

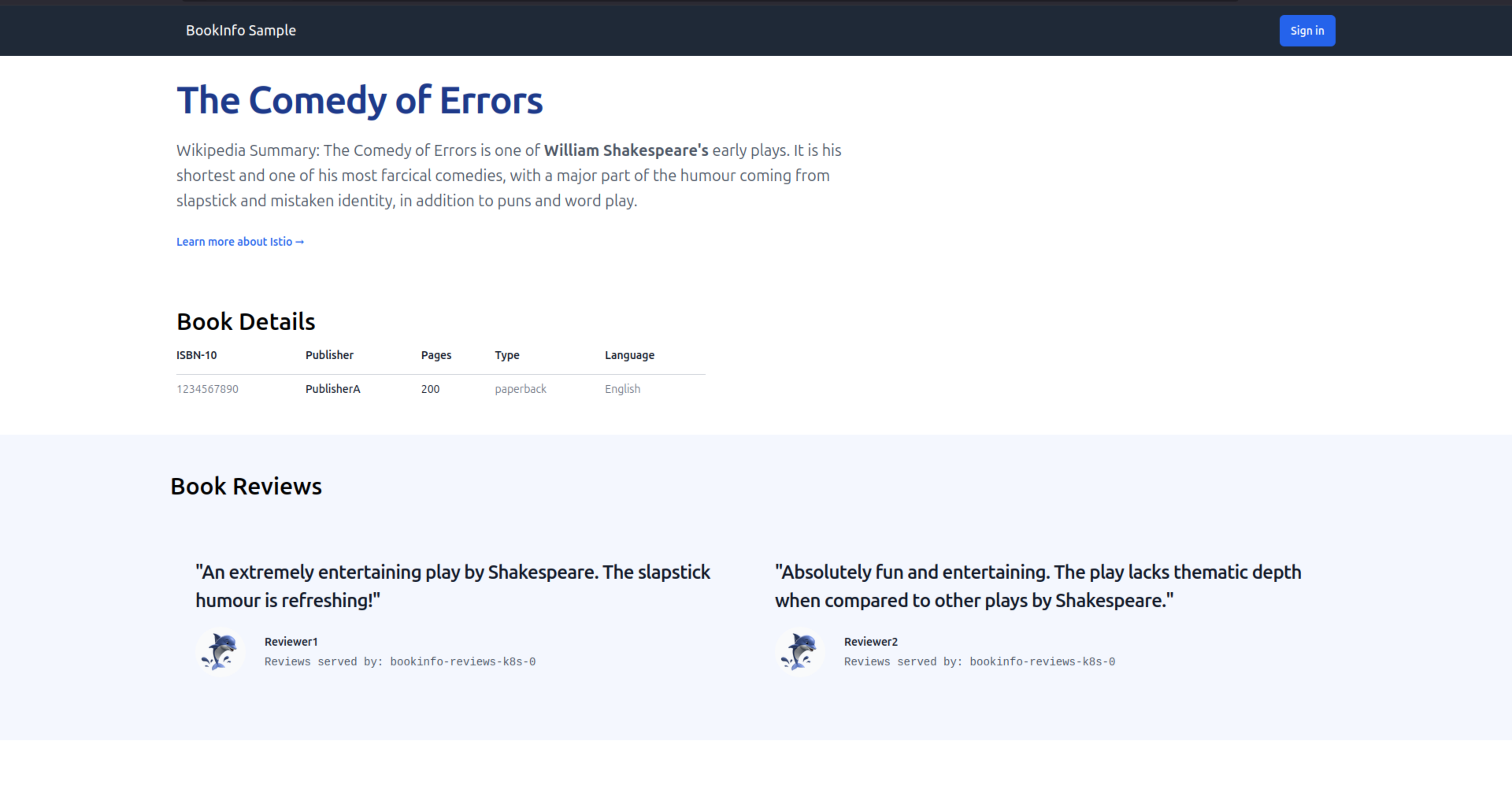

Bookinfo application with details and reviews

This time, you have:

  • Secured the traffic between services using mTLS across two Juju models

  • Restricted the traffic between the bookinfo-productpage-k8s and the bookinfo-reviews-k8s using authorization policies across two Juju models

Verify the Security Configuration

Similar to the security verification in the previous tutorial, we can verify that authorization policies are properly enforced across model boundaries.

With Charmed Istio authorization policies in place, the bookinfo-reviews-k8s charm allows access only to /health and /reviews/* endpoints for GET requests via port 9080 from authorized services.

Verify the security restrictions:

# These still work - authorized endpoints with GET method
juju exec -m bookinfo -u bookinfo-productpage-k8s/0 -- curl -s http://bookinfo-reviews-k8s.bookinfo-2.svc.cluster.local:9080/health
juju exec -m bookinfo -u bookinfo-productpage-k8s/0 -- curl -s http://bookinfo-reviews-k8s.bookinfo-2.svc.cluster.local:9080/reviews/1

# These are now blocked - unauthorized endpoint or method
juju exec -m bookinfo -u bookinfo-productpage-k8s/0 -- curl -s http://bookinfo-reviews-k8s.bookinfo-2.svc.cluster.local:9080/
juju exec -m bookinfo -u bookinfo-productpage-k8s/0 -- curl -s -X POST http://bookinfo-reviews-k8s.bookinfo-2.svc.cluster.local:9080/reviews/1 -d '{}'

Notice how the same commands that worked before are now properly restricted based on endpoint and HTTP method, even across model boundaries.

Troubleshooting

If the reviews section doesn’t appear or you encounter issues:

  1. Check the status of both models:

    juju status -m bookinfo --integrations
juju status -m bookinfo-2 --integrations

  2. Verify the cross-model relations:

    juju offers
juju consumed

  3. Verify pods are running in both namespaces:

    kubectl get pods -n bookinfo
kubectl get pods -n bookinfo-2

  4. Review the beacon logs for cross-model issues:

    juju debug-log -m bookinfo --include istio-beacon-k8s
juju debug-log -m bookinfo-2 --include istio-beacon-k8s

Summary

Congratulations! You’ve successfully:

  • Moved a microservice of the Bookinfo application into a separate Juju model

  • Established secure cross-model relations through Charmed Istio

  • Configured automatic authorization policies for cross-model communication

  • Verified that security policies are enforced across model boundaries

This demonstrates how Charmed Istio enables you to build distributed applications across multiple Juju models while maintaining strong security boundaries and simplified operations.

Tip

If you’re planning to continue with the Getting Started with Kiali tutorial, keep all models running as Kiali will observe the entire mesh topology.

Teardown

To clean up the resources created in this tutorial, run:

juju destroy-model bookinfo-2

If you also want to clean up the resources from the previous tutorial, you can run:

juju destroy-model bookinfo
juju destroy-model istio-system
